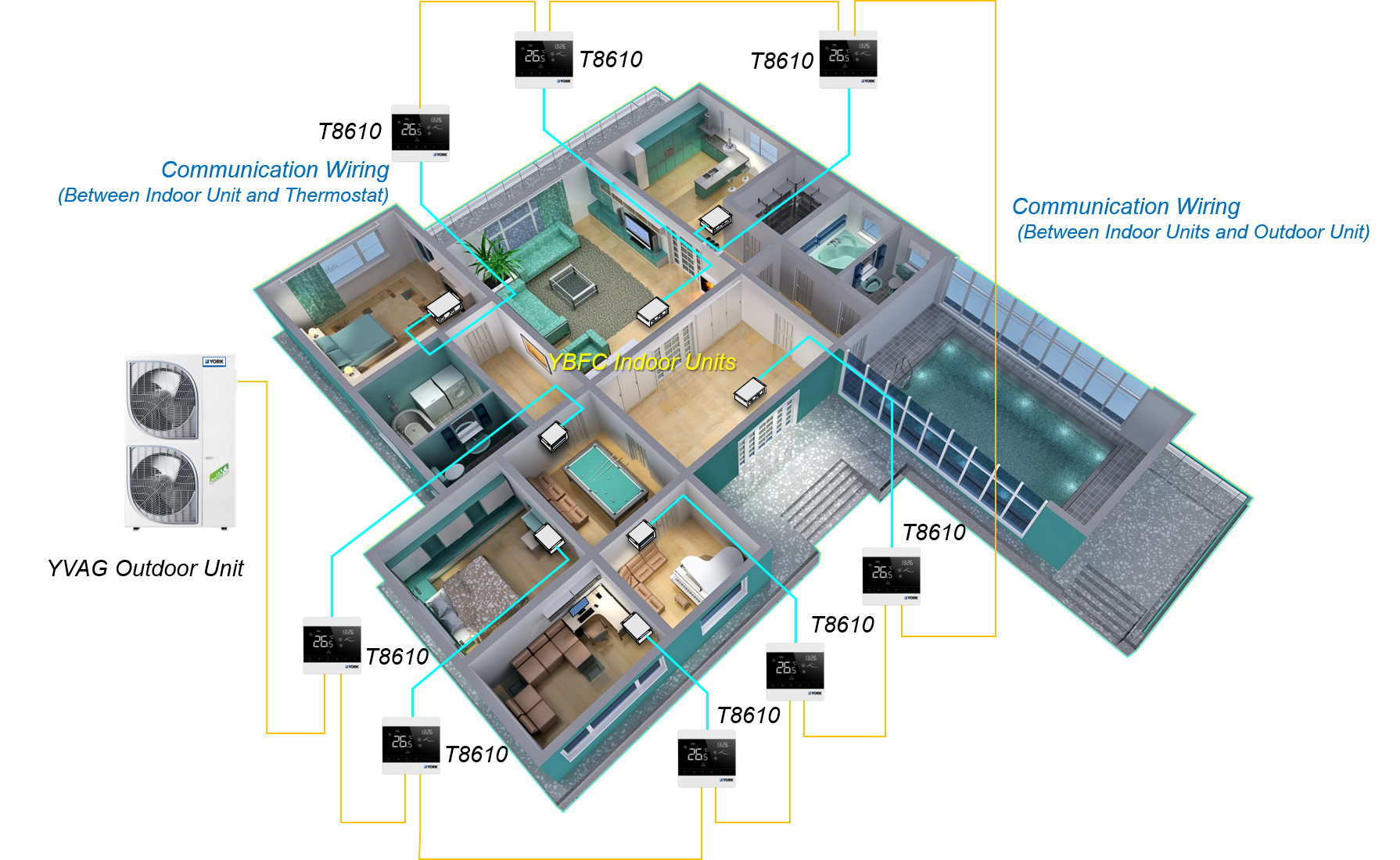

VTF: Variable Temperature and Flow (For Water and Air) YORK® VTF is a full DC inverter water ecosystem with chiller outdoor unit, fan coil indoor units, thermostats and integrated system operational smart controls.

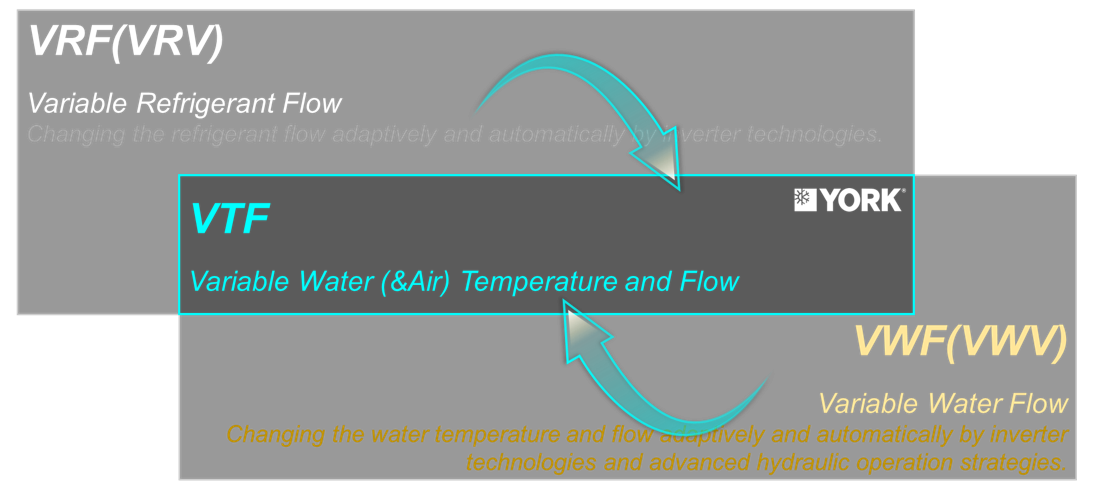

VTF covers VRF and VWF:
| Major Features | VTF | VRF |
|---|---|---|
| Essence of System Technology | the real central air-conditioning system, the chilled/heated water is treated and circulated centrally and stably. | the same as the single split (the air treatment is the same as the single split totally, those technical features which are being promoted on VRF are to close the gap between the VRF and single split) |
| Comfort Index: Flowing Air Temperature Difference | ≤ 5℃ | 2~10℃ (the lower limit on evaporating temperature) |
| Comfort Index: Humidity Balance | More reasonable and comfortable humidity balance (comfortable relative humidity range 40%~60%) | Excessive dehumidification |
| System Reliability | Never breakdown for maintaining anyone of indoor units or thermostats | system breakdown for maintaining anyone of indoor units |
| System Extention | No limit | 50%~130% capacity ratio between IDUs and ODU |
| System Retrofit | No limit and flexible replacement | bundled indoor units and outdoor unit |
| System Compatibility | Freely chosen FCUs from the market | bundled indoor units and outdoor unit |
| Capacity Correction Factor of Piping Program | No attenuation, factor 1.0 | Positive attenuation, factor 0.75~1.00 |
| Leakage Risk of Indoor Side Piping System | ≤ 0.3MPa normally, the upper limit 0.6MPa | 0.6~3.3MPa (liquid pipe 2.2~3.3MPa) |
| Threat of Refrigerant Leakage | No, only water in the indoor piping system | concentration limit |
